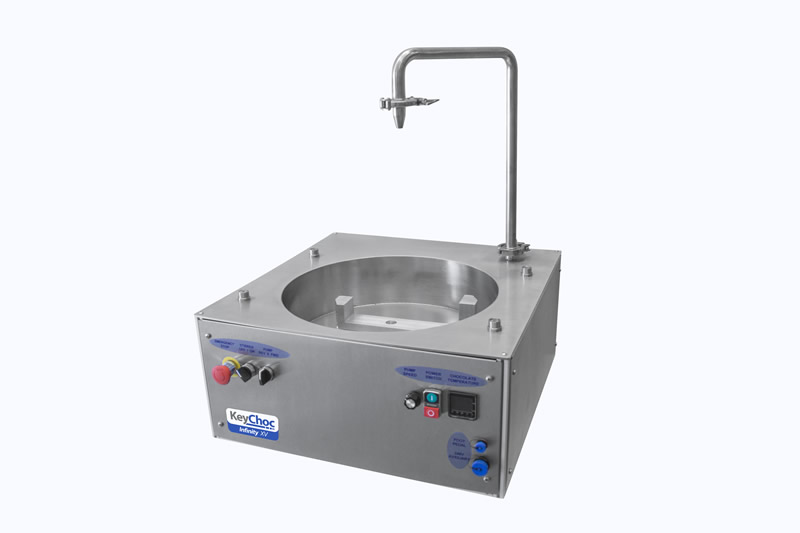

INFINITY X2 Chocolate Tempering Machine

£4,300.00

The new INFINITY Series chocolate tempering machines are fitted with a custom-designed chocolate pump, instead of an auger or wheel.
cooling_tunnel

The new INFINITY Series chocolate tempering machines are fitted with a custom-designed chocolate pump, instead of an auger or wheel. The INFINITY X2 has a 20kg tank capacity but it can be operated with as little as 3 kgs of chocolate. It is a table-top machine with a footprint of 600 x 600mm. Chocolate is manually tempered using seed.

Tempering Method

First melt your chocolate to 45˚c. If you’re starting from solid callets, this will take approximately 3 hours and so is often done overnight. You then have two choices for how to temper your chocolate:

Method 1 – Set the temperature as required and add more solid chocolate callets (seed) equivalent to 20-30% of the melted chocolate in your tank. Your chocolate will be tempered in approximately 30 minutes, OR

Method 2 – Allow the melted chocolate to cool to 34-35˚c, then add 2-3kgs of seed or 1% of Mycryo (pre-crystallised cocoa butter). Your chocolate will be tempered in 5-10 minutes.

Once tempered, your chocolate will remain tempered for up to 8 hours in the INFINITY X2 without the need for any extra stirring or heat. By comparison, a typical 8kg or 15kg wheel moulding machine will only keep your chocolate tempered for a maximum of 1 hour unattended in perfect conditions.

Other features include:

  • Foot-pedal operated dosing system (with optional timer control)
  • Variable flow rate and interchangeable nozzles
  • Dual agitation for efficient seed tempering with no dead spots
  • Cover totally encloses chocolate to protect it from contamination
  • Vibrating table attachment (optional)
  • Depositing head (optional)

The INFINITY X2 pumped chocolate tempering machine is manufactured in the UK.

Description
Technical Specification
Description

Description

The new INFINITY Series chocolate tempering machines are fitted with a custom-designed chocolate pump, instead of an auger or wheel. The INFINITY X2 has a 20kg tank capacity but it can be operated with as little as 3 kgs of chocolate. It is a table-top machine with a footprint of 600 x 600mm. Chocolate is manually tempered using seed.

Tempering Method

First melt your chocolate to 45˚c. If you’re starting from solid callets, this will take approximately 3 hours and so is often done overnight. You then have two choices for how to temper your chocolate:

Method 1 – Set the temperature as required and add more solid chocolate callets (seed) equivalent to 20-30% of the melted chocolate in your tank. Your chocolate will be tempered in approximately 30 minutes, OR

Method 2 – Allow the melted chocolate to cool to 34-35˚c, then add 2-3kgs of seed or 1% of Mycryo (pre-crystallised cocoa butter). Your chocolate will be tempered in 5-10 minutes.

Once tempered, your chocolate will remain tempered for up to 8 hours in the INFINITY X2 without the need for any extra stirring or heat. By comparison, a typical 8kg or 15kg wheel moulding machine will only keep your chocolate tempered for a maximum of 1 hour unattended in perfect conditions.

Other features include:

  • Foot-pedal operated dosing system (with optional timer control)
  • Variable flow rate and interchangeable nozzles
  • Dual agitation for efficient seed tempering with no dead spots
  • Cover totally encloses chocolate to protect it from contamination
  • Vibrating table attachment (optional)
  • Depositing head (optional)

The INFINITY X2 pumped chocolate tempering machine is manufactured in the UK.

Technical Specification
  • Operating capacity: min 3kgs - max 20kgs
  • Operating environment: max 20˚c
  • Direct heating
  • Variable speed pump
  • Digital temperature control
  • All stainless steel
  • Dimensions: (W) 600mm x (D) 600mm x (H) 290mm
  • Single phase, 220-240V
  • Max Power Consumption: 860W
  • Max Current: 3.6 Amps
  • No plumbing necessary
  • OPTIONAL vibrating table
  • OPTIONAL depositing head
  • OPTIONAL deposit timer control
