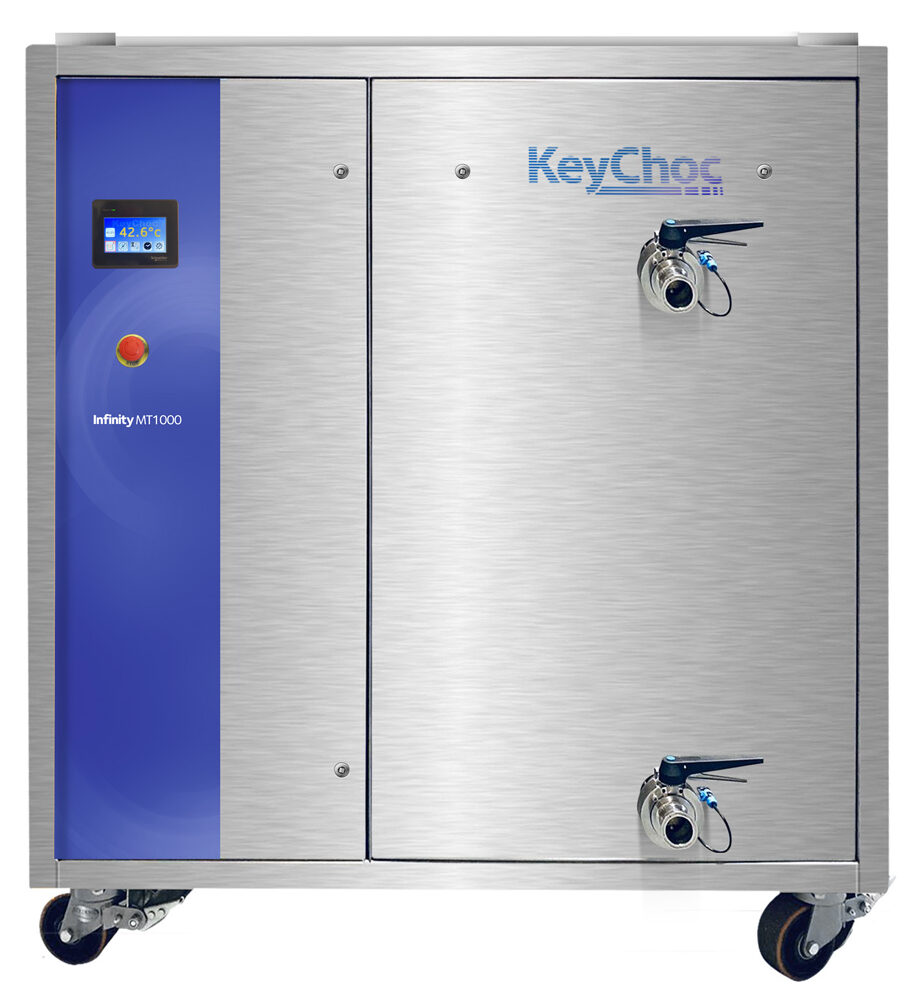

Infinity MT1000-P Chocolate Melting Tank

Description

• Sturdy, stable construction on strong castors and designed to be easily lifted by forklift.
• PLC-driven with full touchscreen controls
• Bottom-mounted motor for better hygiene
• Sliding lid enabling excellent access to inside of tank and easy removal of the stirrer for cleaning
• Gate-type agitator
• All stainless steel construction; contact parts 304 S/S and frame from 303 S/S
• 50mm heated, butterfly discharge valve, located approx. 400mm above ground level
• Fitted with an onboard, auger-driven pump and a separate, heated, high-level discharge spout.

All INFINITY Series machines, including the new INFINITY MT Series melting tanks are designed and manufactured in the UK.

• Tank Capacity: 1000 Kgs (2200 lbs)
• On-board, auger-driven pump and separate, heated, high-level discharge valve
• Sturdy, stable construction on strong castors and designed to be easily lifted by forklift.
• All stainless steel construction; contact parts 304 S/S and frame from 303 S/S
• PLC-driven with full touchscreen controls
• Digital thermostatic temperature control
• Hinged lid enabling excellent access to inside of tank and easy removal of the stirrer for cleaning
• Electrical safety cut-out fitted to lid
• Gate-type agitator
• Non-imersion ceramic heaters for ease of maintenance
• 50mm heated, butterfly discharge valve, located approx. 400mm above ground level
• Bottom-mounted motor for better hygiene
• Dimensions: (W) 1400 x (D) 1400 x (H) 1550 mm
• Power: 3 Phase Supply Required, 380-415V, 32A, 50Hz
• Heating: 6.6 kW
• Stirrer Motor: 1.1 kW
• Auger Motor: 0.25 kW
• Made at KeyChoc, St. Helens, UK
